Lug Stainless Steel Butterfly Valve
Lug Stainless Steel Butterfly Valve
Lug Stainless Steel Butterfly Valve
Model
DN40-DN1600

Item specifics

RAL
5002
RAL
5007
RAL
5010
RAL
5015
RAL
5017

Review

Description

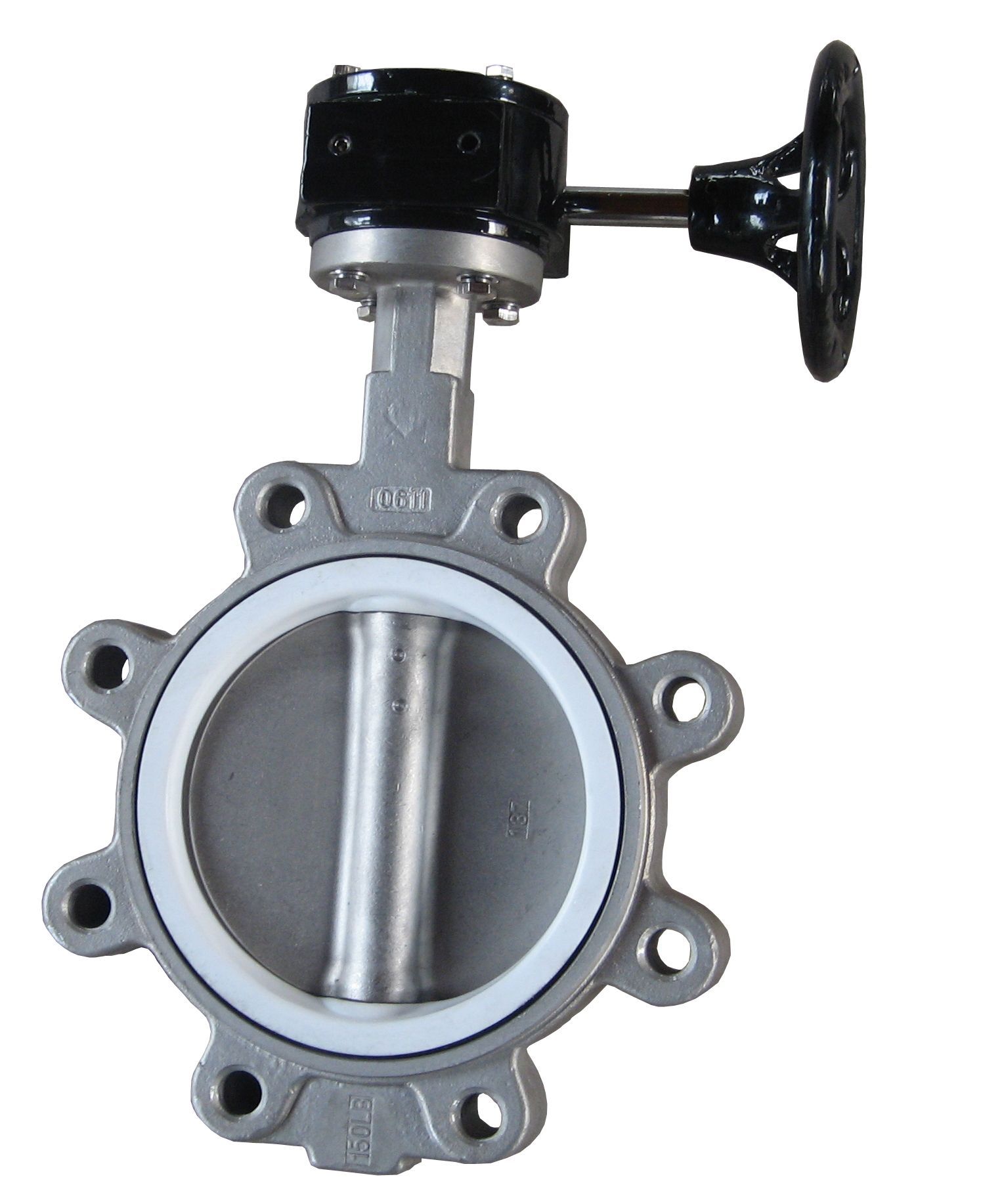

Lug Stainless Steel Butterfly Valve
Lug type butterfly valve drive mode can choose manual, worm gear, pneumatic, electric, can choose flange, the clamp connection mode, can choose single eccentric structure forms, line type, double eccentric, triple eccentric, sealing structure can choose soft seal and hard seal, pressure range PN0.1-10 mpa, nominal diameter for DN40-2000 mm, the material can choose cast steel, stainless steel. As the use of valves is very wide, the same valve in different occasions and working conditions have different collocation.

The disc of the wafer lug butterfly valve is installed in the diameter direction of the pipeline. In the butterfly valve body cylindrical channel, the disc disc around the axis of rotation, rotation Angle of 0°-90°, rotation to 90°, the valve is fully open.
