Custom Ductile Iron Manual Butterfly Valve For Water
- Model
- DN40-DN1600
Item specifics
- Standard
- EN1092-2 PN6/10/16、AS2129 TabD/E、ASME B16.1 CL150
- Sample
- Free
- MOQ
- 1PCS
- Certification
- ISO9001/PED/CE/EAC/TüV
- OEM
- YES
- Color
- Accept Custom
- Certificate of origin
- YES
- 3.1 Material test
- YES
- Visit the factory
- Real-time video
- Guarantee period
- 3 Years
Review
Description
Custom Ductile Iron Manual Butterfly Valve For Water
General informations
FROM DN25 TO DN1600(2" TO 64")
NOMINAL PRESSURE: ANSI B16.1 150LB PN10 or PN16
DESIGN STANDARD: EN 593, EN1074-1 and EN1074-2
FACE TO FACE: EN 558 Series 20
FLANGES: EN 1092-2

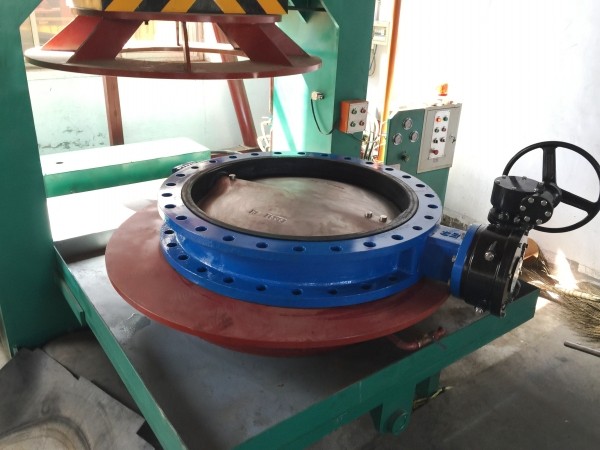

TESTS: EN 12266-1
WORKING TEMPERATURE: for EPDM type Max. +120°C; for NBR type Max. ≤ +80°C
Operation
Gear Box and Lever Hand
Body
Ductile iron GJS-400-15 (GGG-40)
Disc
Stainless steel 316
Liner
EPDM OR BUNA
Shaft
Stainless steel 420
O-ring
NBR
Bolt & Nut
Stainless steel A2
