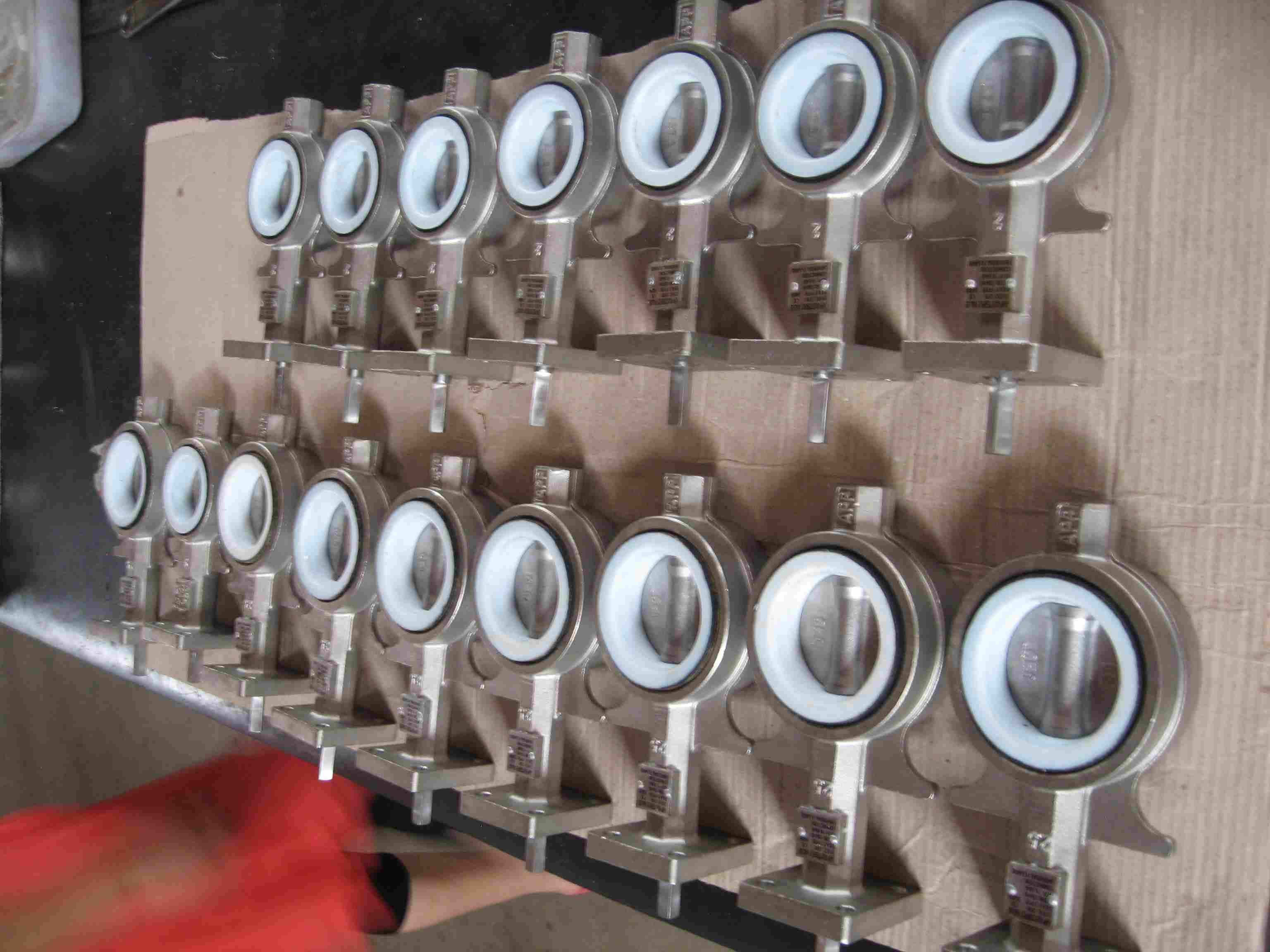

Wafer Stainless Steel Butterfly Valve
Wafer Stainless Steel Butterfly Valve
Wafer Stainless Steel Butterfly Valve
Model
DN40-DN600

Item specifics

RAL
5002
RAL
5007
RAL
5010
RAL
5015
RAL
5017

Review

Description

Body Material
Cast iron GJL 250;Ductile iron EN-GJS-400-15

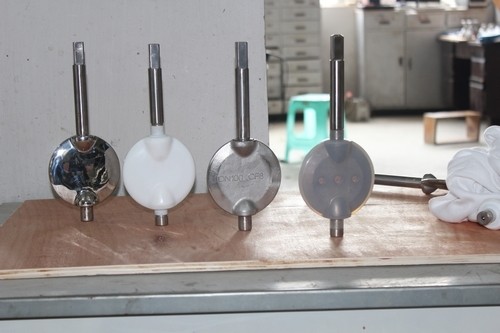

Disc Material
Stainless steel CF8M + PTFE
Sleeve
PTFE + FPM (Viton®)
Stem
Stainless steel 316
Joint
FRP (Fiber reinforced plastic)
Bushing
FRP (Fiber reinforced plastic)
Ring
Steel
Stem circlip
Steel
Operation
Lever Hand;Gear box
Data Sheet-Tecflon – PTFE lined butterfly valve 50-150
Data Sheet-Tecflon – PTFE lined butterfly valve 200-400

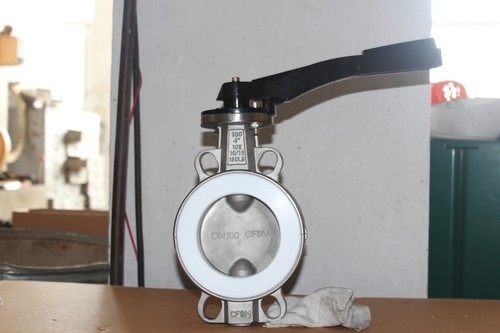

Wafer Stainless Steel Butterfly Valve
1. Butterfly valve has the characteristics of simple structure, small volume, light weight, material consumption, small installation size, quick switch, 90° reciprocating rotation, small driving torque, etc., used to cut off, connect and adjust the medium in the pipeline, with good fluid control characteristics and close sealing performance.

2.Butterfly valve can transport mud, at the mouth of the least liquid accumulation. Good sealing can be achieved under low pressure. Good regulation performance.

3.Butterfly plate streamlined design, so that the loss of fluid resistance is small, can be described as an energy saving product.

4.Valve stem is through rod structure, after quenching and tempering treatment, has good comprehensive mechanical properties and corrosion resistance, abrasion resistance. Butterfly valve open and close the stem only for rotary movement without lifting operation, stem packing is not easy to damage, reliable sealing. It is fixed with the butterfly plate cone pin, and the overhanging end is designed to prevent the stem from collapsing when the connection between the stem and the butterfly plate breaks unexpectedly.

5.Connection mode is flange connection, clip connection, butt welding connection and lug clip connection.

Driving form is manual, worm gear transmission, electric, pneumatic, hydraulic, electro-hydraulic linkage and other actuators, which can realize remote control and automatic operation.
