Custom Pneumatic Actuator Wafer Butterfly Valve DN25-DN1600 For Water Pipe
Custom Pneumatic Actuator Wafer Butterfly Valve DN25-DN1600 For Water Pipe
Custom Pneumatic Actuator Wafer Butterfly Valve DN25-DN1600 For Water Pipe
Custom Pneumatic Actuator Wafer Butterfly Valve DN25-DN1600 For Water Pipe
Custom Pneumatic Actuator Wafer Butterfly Valve DN25-DN1600 For Water Pipe
Model
DN25-DN1600

Item specifics

Standard
EN1092-2 PN6/10/16、AS2129 TabD/E、ASME B16.1 CL150
Sample
Free
MOQ
1PCS
Certification
ISO9001/PED/CE/EAC/TüV
OEM
YES
Color
Accept Custom
Certificate of origin
YES
3.1 Material test
YES
Visit the factory
Real-time video
Guarantee period
3 Years

Review

Description

Custom pneumatic actuator wafer butterfly valve

Custom pneumatic actuator wafer butterfly valve with EPDM liner and having the WRAS Approval for use on drinking water. Pneumatically operated, actuation is either Single (spring closed or open) or Double acting with a range of configurable modular options for your automation process, including limit switches, solenoid valves and positioners.

In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Key Features:

Spring Return or Double Acting Actuator
Wafer Pattern
To fit between PN6/10/16, ANSI 150, Table D & E Flanges
Epoxy Coated Ductile Iron Body
Stainless Steel Disc and Shaft

Pneumatic Actuated Butterfly Valves are designed to meet the demanding needs of today's process flow control requirements, offering complete confidence as an integral part of your automatic system. During build up all actuated packages are rigorously inspected, and 100% factory tested prior to dispatch.

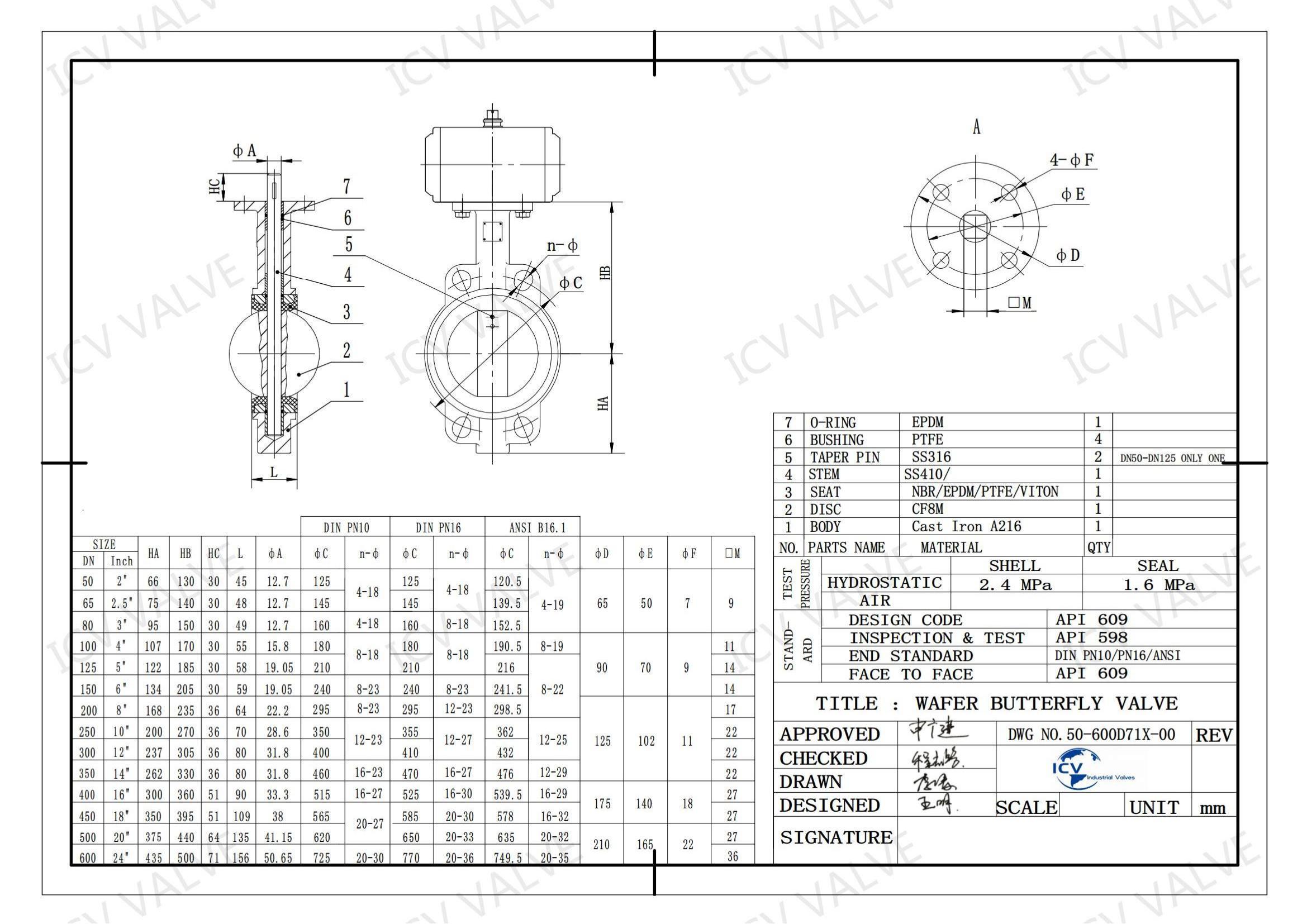

Data Sheet-Double acting pneumatic actuator butterfly valve
ICV VALVE - pneumatic actuator butterfly valve
pneumatic actuator wafer butterfly valve manufacturer
